T-SIM7000G
Specifications
| MCU | ESP32 |
| Flash | 4MB |
| PSRAM | 8MB |
| Serial Chip | CH9102 |
| REGION | Global |
| LTE&GSM | SIM7000G |
| Wireless protocol |
Wi-Fi + Bluetooth 4.2 3D WiFi antenna[Use by default] |
| Power Supply Mode | USB Type-C / 18650 battery holder / 2pin Solar charging cable interface |
| Support | TF card , Nano SIM card[2G], GPS |
Technology Support [Github]
If you need technical support please check the link to find more details.
1. Size

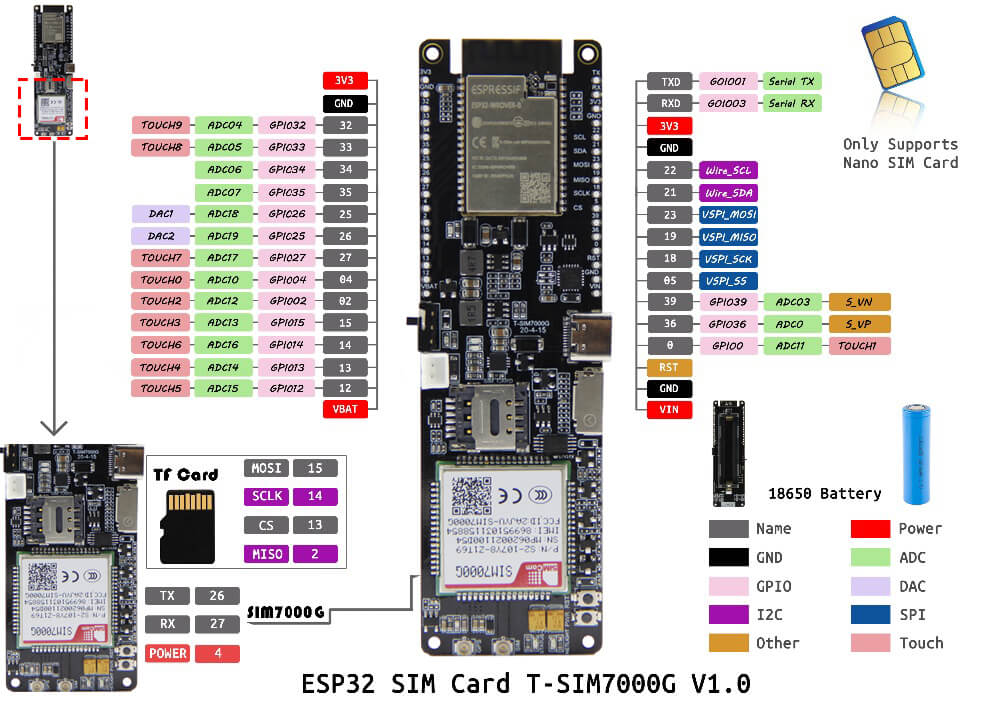

2. Pin Diagram
It can be used with Lora 868/915Mhz function Shield to send and receive data over a long distance with low power consumption[Product link will be updated here soon..].

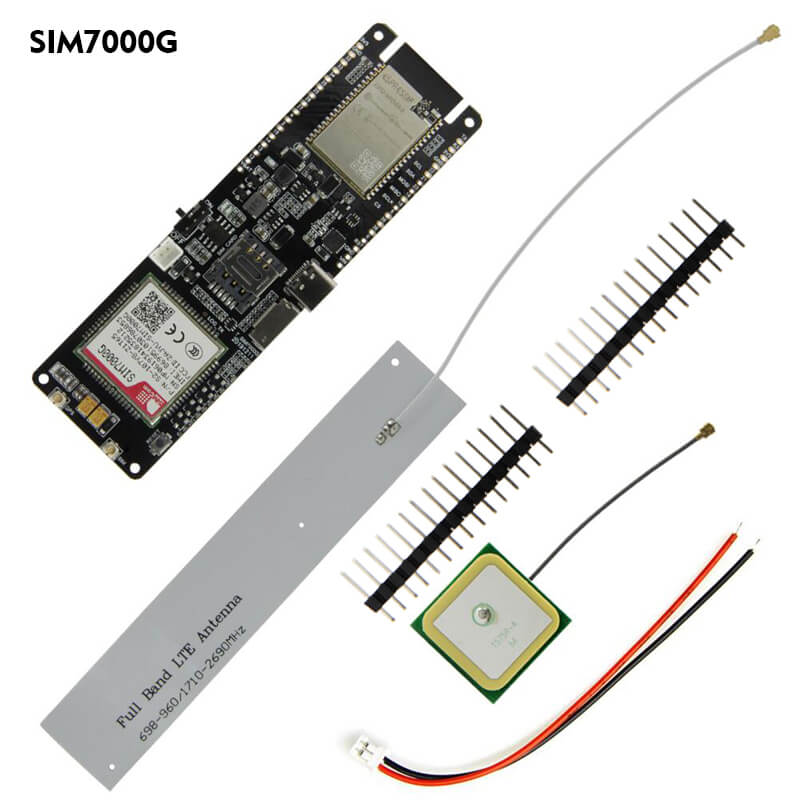

- 1x T-SIM7000G
- 1x SIM antenna
- 1x GPS antenna
- 1x Power cable
- 2x Pin
(Notice: The shipping list does not include TF card and SIM card）
Original: $9.27
-70%$9.27
$2.78
Description
Specifications
| MCU | ESP32 |
| Flash | 4MB |
| PSRAM | 8MB |
| Serial Chip | CH9102 |
| REGION | Global |
| LTE&GSM | SIM7000G |
| Wireless protocol |
Wi-Fi + Bluetooth 4.2 3D WiFi antenna[Use by default] |
| Power Supply Mode | USB Type-C / 18650 battery holder / 2pin Solar charging cable interface |
| Support | TF card , Nano SIM card[2G], GPS |
Technology Support [Github]
If you need technical support please check the link to find more details.
1. Size
2. Pin Diagram
It can be used with Lora 868/915Mhz function Shield to send and receive data over a long distance with low power consumption[Product link will be updated here soon..].
- 1x T-SIM7000G
- 1x SIM antenna
- 1x GPS antenna
- 1x Power cable
- 2x Pin
(Notice: The shipping list does not include TF card and SIM card）
