T-0.99 Inch LCD

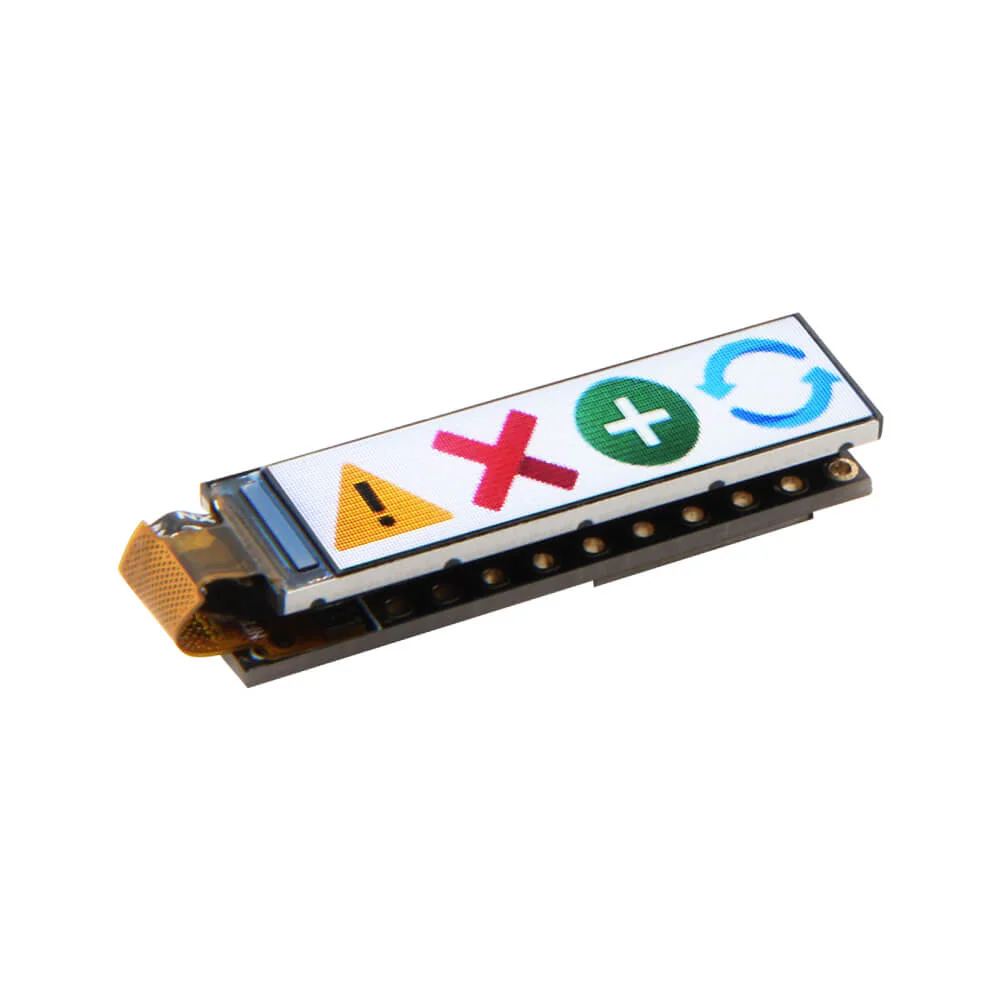

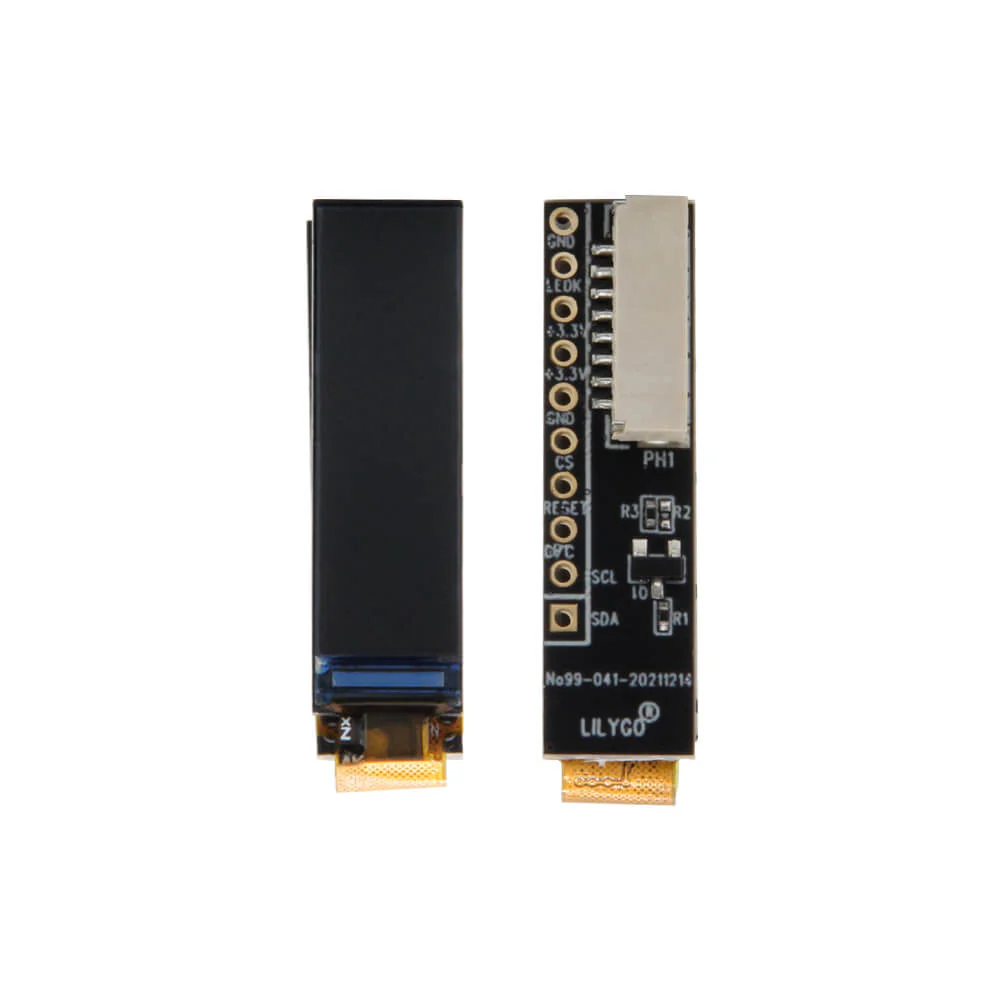

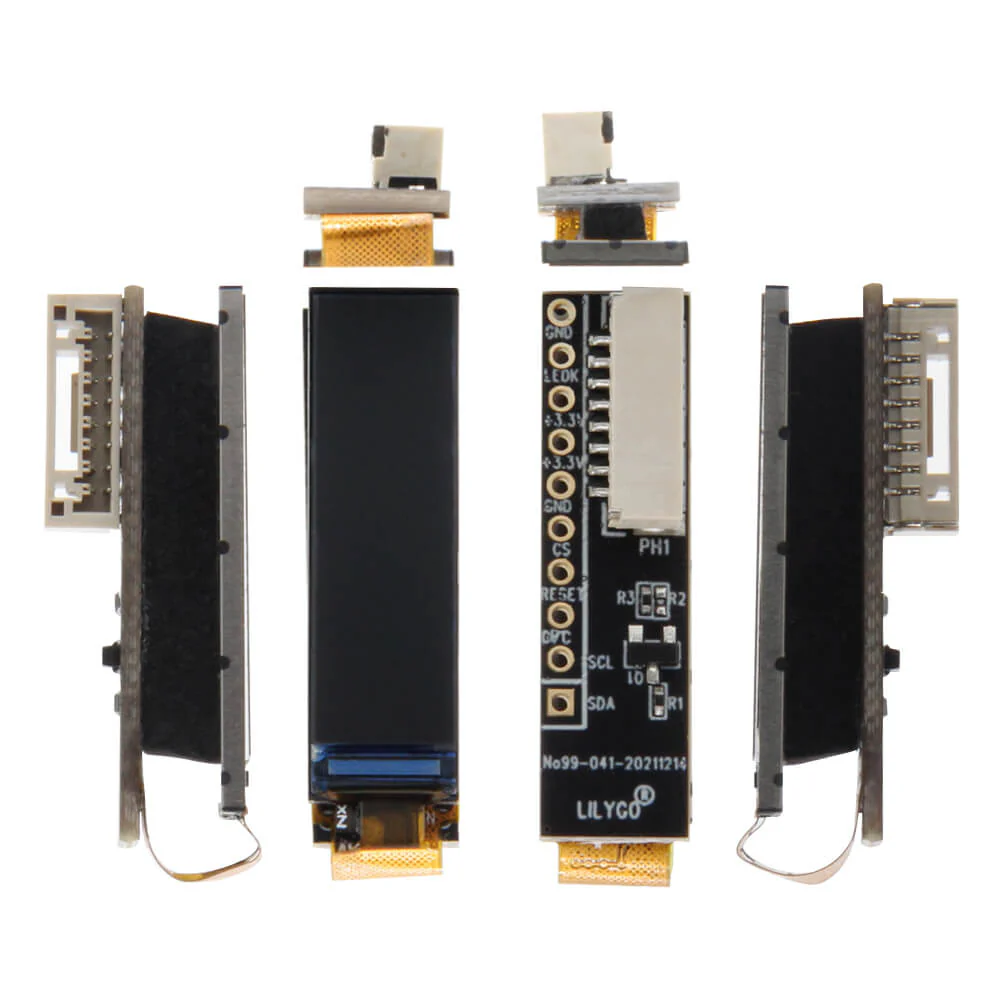

LILYGO® TTGO T-0.99 Inch LCD display [resolution can reach 40(H)RGB x 160(V)] is a newly developed expansion board with a rectangular design, immersion gold process, sub-black material, and the driver IC of the display is GC9D01.
Two expansion options:
- GH1.25mm 8pin Expansion Interface
- 2.54mm 10PIN pin Interface
Specifications
| Driver IC | GC9D01 |
| LCD Size | 0.99 inch |
| Interface Protocol | SPI 4 LINE |
| Resolution | 40(H)RGB X 160(V) |
| Temp | Operating: -20°C~70°C; Storage: -30°C~80°C |
| Color arrangement | RGB Vertical stripe |
| Active Area | 6.096(H) X 24.384(V) mm |
| Display Size | 8.6(H) X 29.8(V)x1.5(D)mm |
Technology Support [Github]
If you need technical support please check the link to find more details.
Size

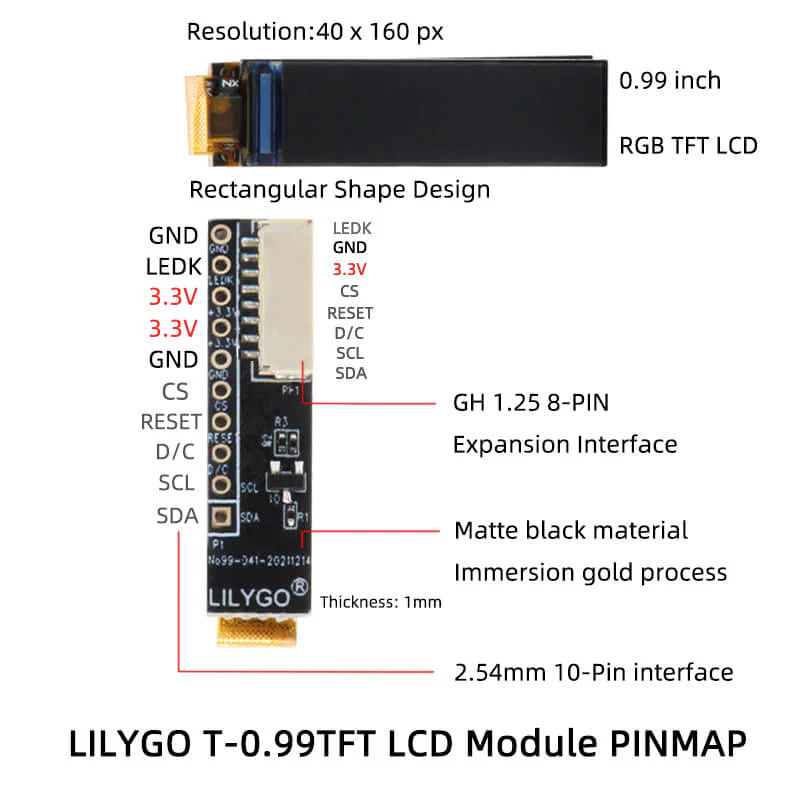

Pin Diagram

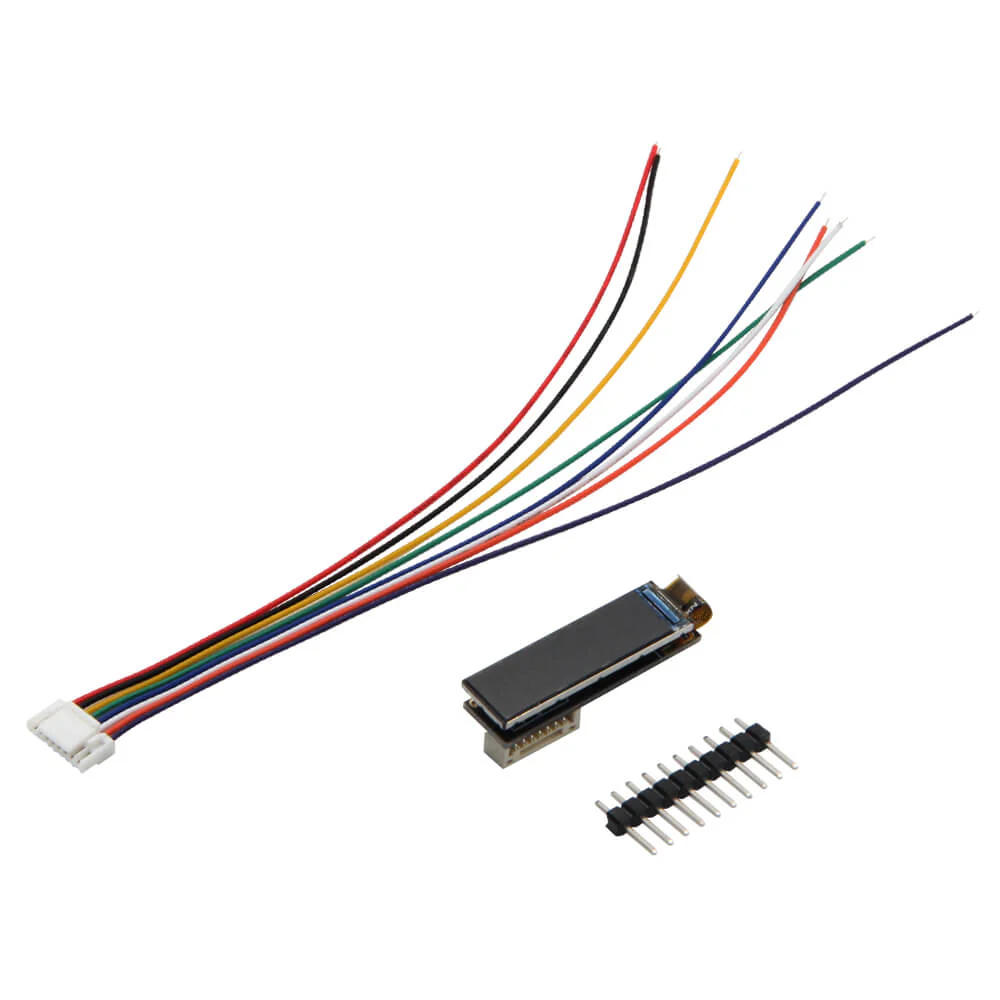

- T-0.99 Inch LCD
- 1 X T-0.99 inch LCD 40(H)RGB x 160(V)
- 1 X 2.54 PIN (Shipment is not welded by default)

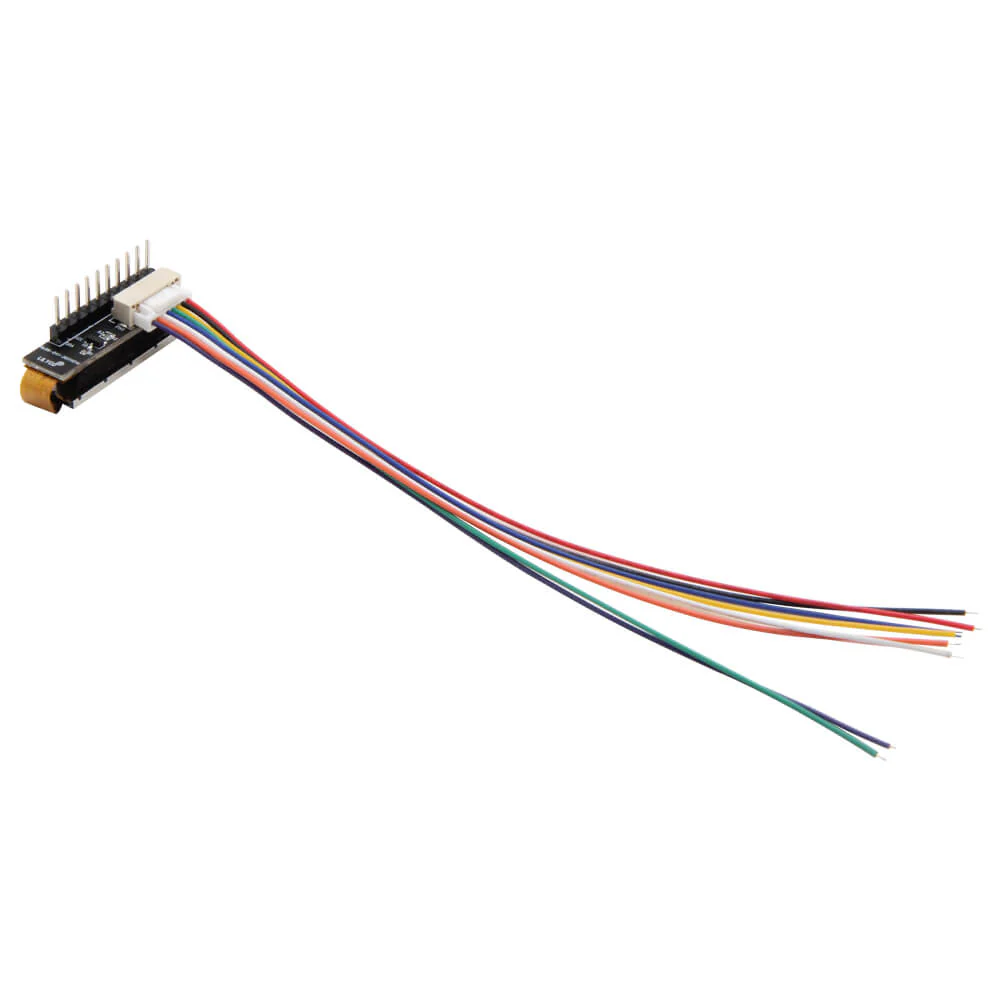

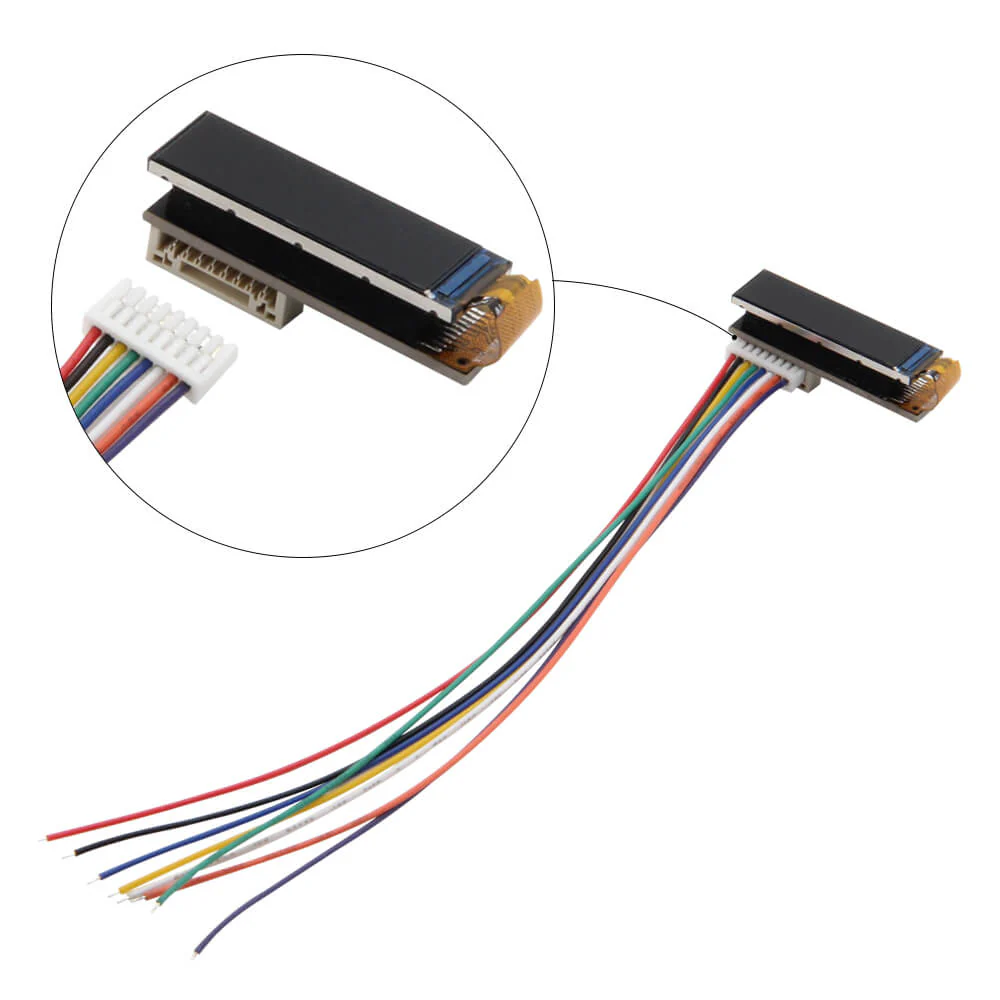

- 1 X GH1.25 8pin Interface Extension line (length 150mm)
