T-Dongle

T-Dongle equipped with ESP32-S2 (support Wi-Fi & BLE) chip.
1.14- inch ST7789V HD LCD (support Arduino) display.
Equipped with OTG Male Female Interface.
Grove Connector, TF Card, WiFi 3D antenna.

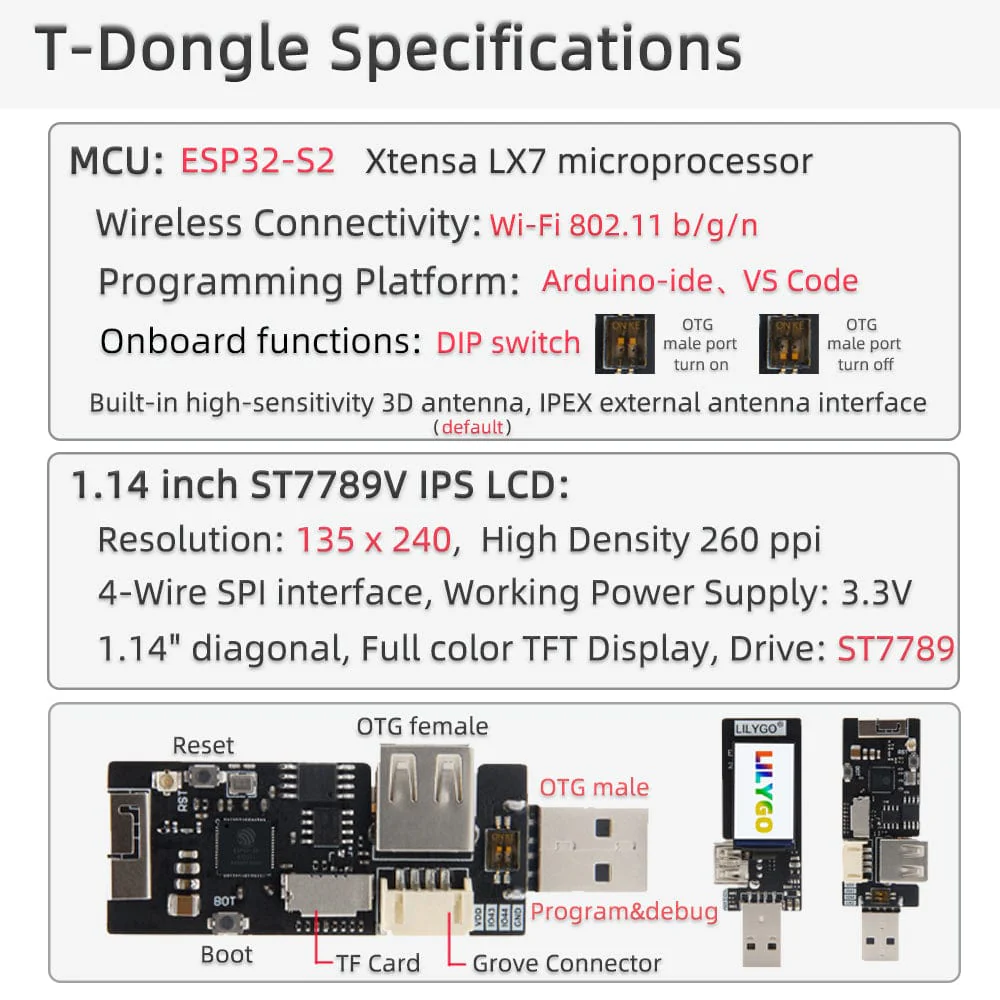

Specifications

MCU	ESP32-S2 Xtensa LX7 microprocessor
Wireless Connectivity	Wi-Fi 802.11 b/g/n
Programming Platform	Arduino-ide, VS Code
Onboard functions	DIP switch

Built-in high-sensitivity 3D antenna, IPEX external antenna interface (default)

1.14 inch ST7789V IPS LCD

Resolution	135 X 240, High Density 260 PPI
4-Wire SPI interface, Working Power Supply	3.3V
1.14" diagonal, Full-color TFT Display, Drive	ST7789



Technology Support [Github]

If you need technical support please check the link to find more details.

LilyGo T-Dongle

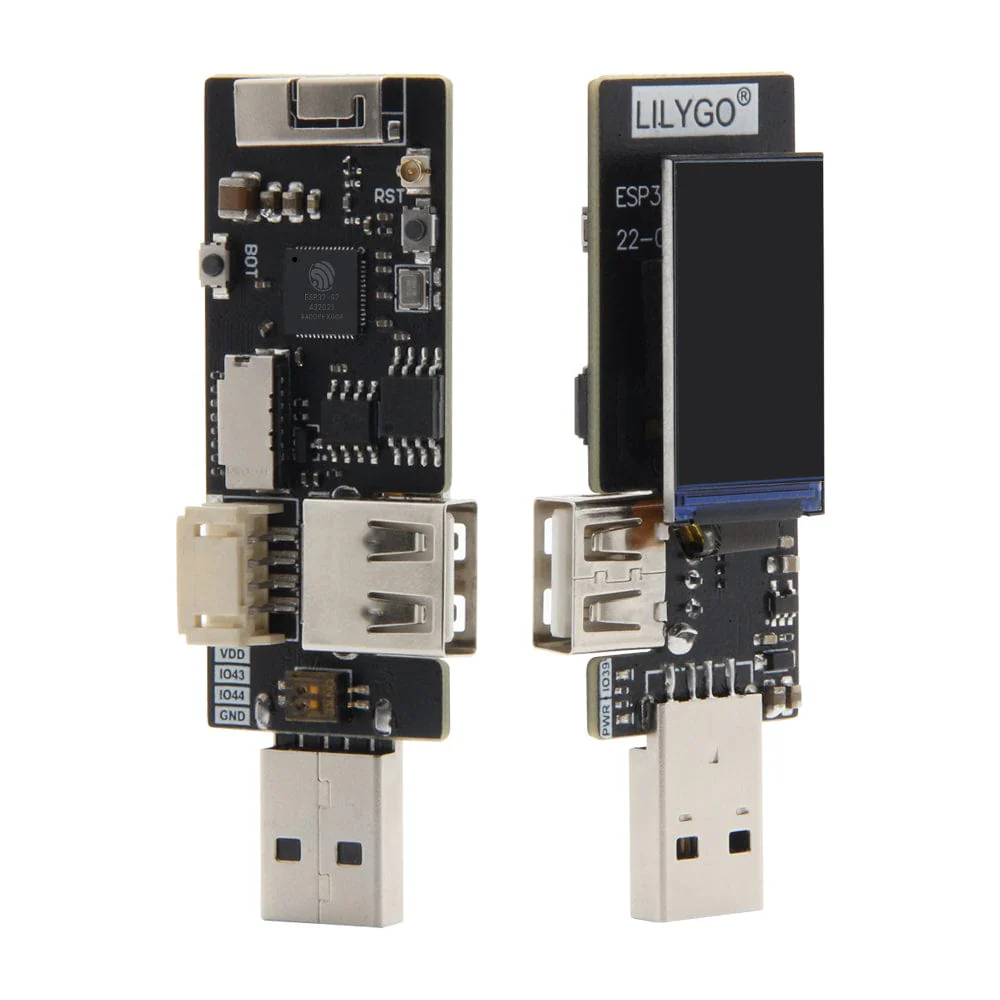

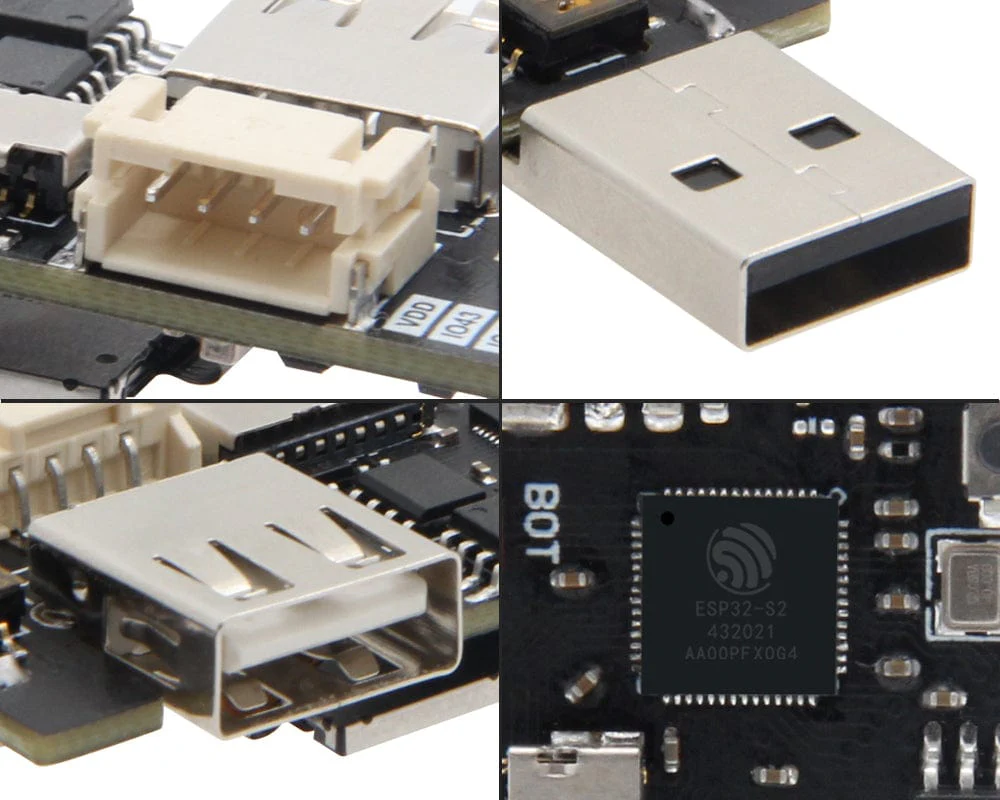

1. Appearance Details

2. Size

7.2cm x 2.3cm x 1.2cm

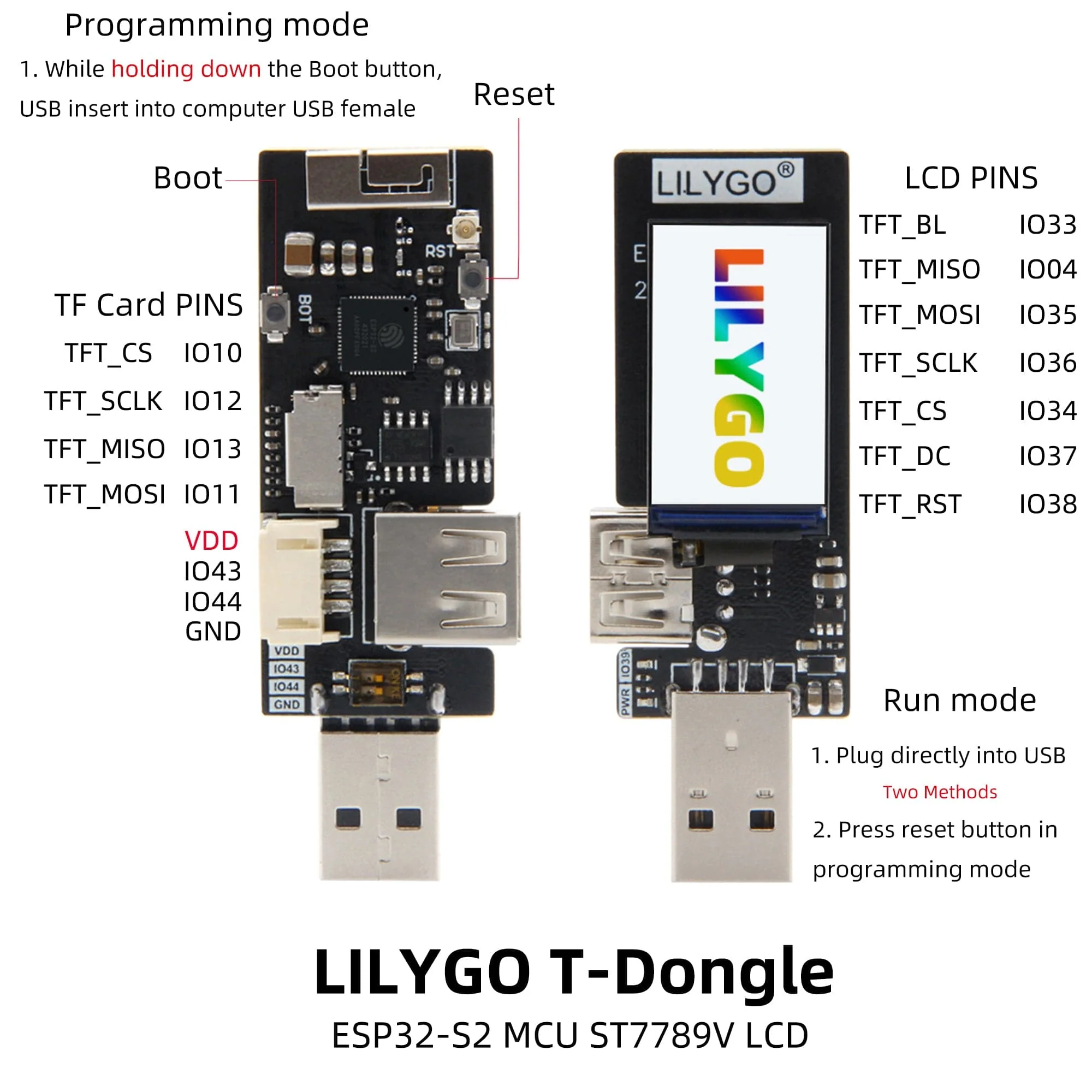

3. Pin Diagram

T-Dongle Option

1 X T-Dongle (ESP32-S2)

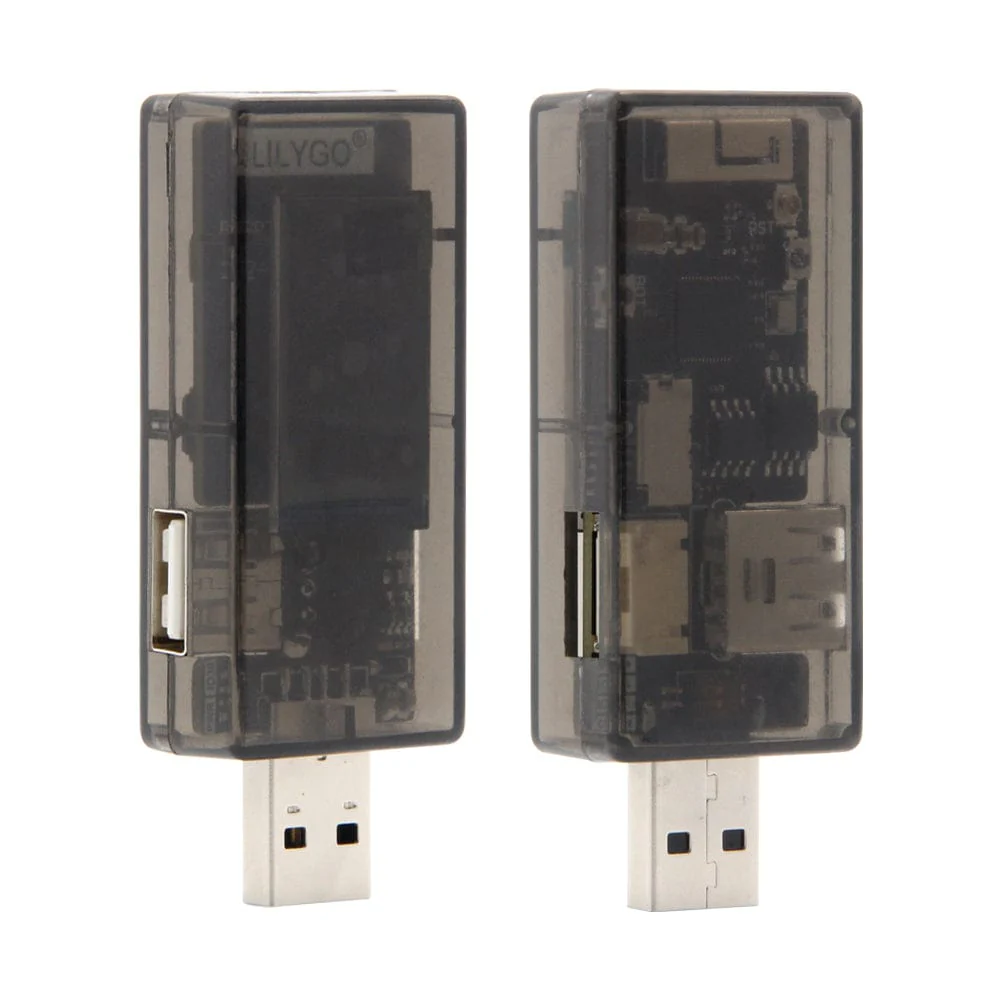

1 X ABS Transparent Black Case (The shell is shipped without assembly by default)
