T-Pico

T-Pico Pro is an upgraded version of the Pico C3, featuring a reversible Type-C design that is compatible with both the RP2040 port and the ESP32-C6 USB port.

Specifications of T-Pico2350

MCU1	RP2350, 32-bit dual-core microcontroller,ARM Cortex-M33 (FPU) + Hazard3 RISC-V
MCU	ESP32-C6, 32-bit dual-core RISC-V processor, 2.4 GHz Wi-Fi 6 + Bluetooth 5 (LE) + Thread/Zigbee

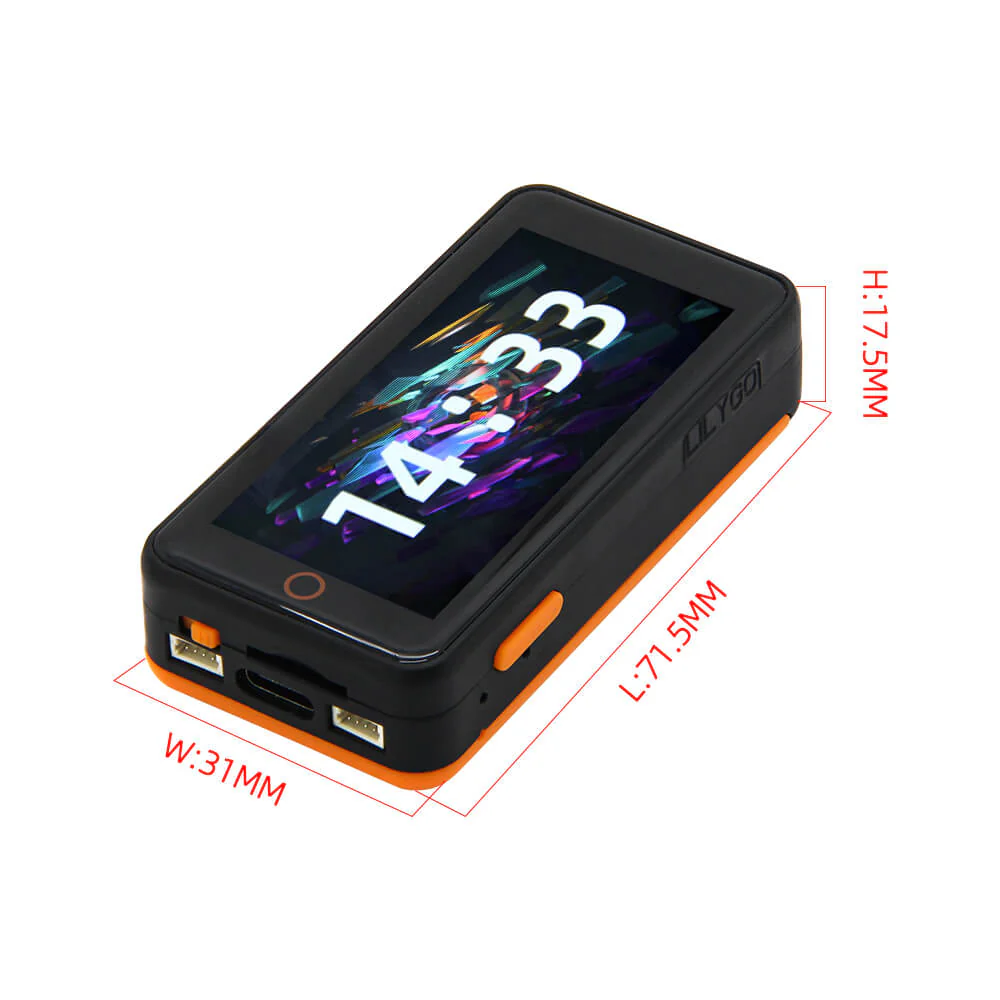

Size	36 X 72 X 12mm
USB Charging	5V, 500mA

Specifications of T-Pico Pro/ C3

Name	T-Pico Pro	T-Pico C3
MUC	RP2040+ESP32-C6	RP2040+ESP32-C3
Screen (LCD)	2.33 inch ST7796	1.14 inch ST7789V
Touch	Yes	No
Resolution	222(H)RGB X 480(V)	135X240
Flash	16MB+4MB	4MB
RAM	264KB+512KB
Mode	1. Plug directly into USB 2. Flip to plug into USB	1. Plug directly into USB 2. Flip to plug into USB
Wireless	1. 2.4 GHz Wi-Fi 6  2. Bluetooth 5 (LE) + IEEE802.15.4 protocol	1. 2.4 GHz Wi-Fi 2. Bluetooth V5.0+BLE]

Instructions for use

T-Pico Pro

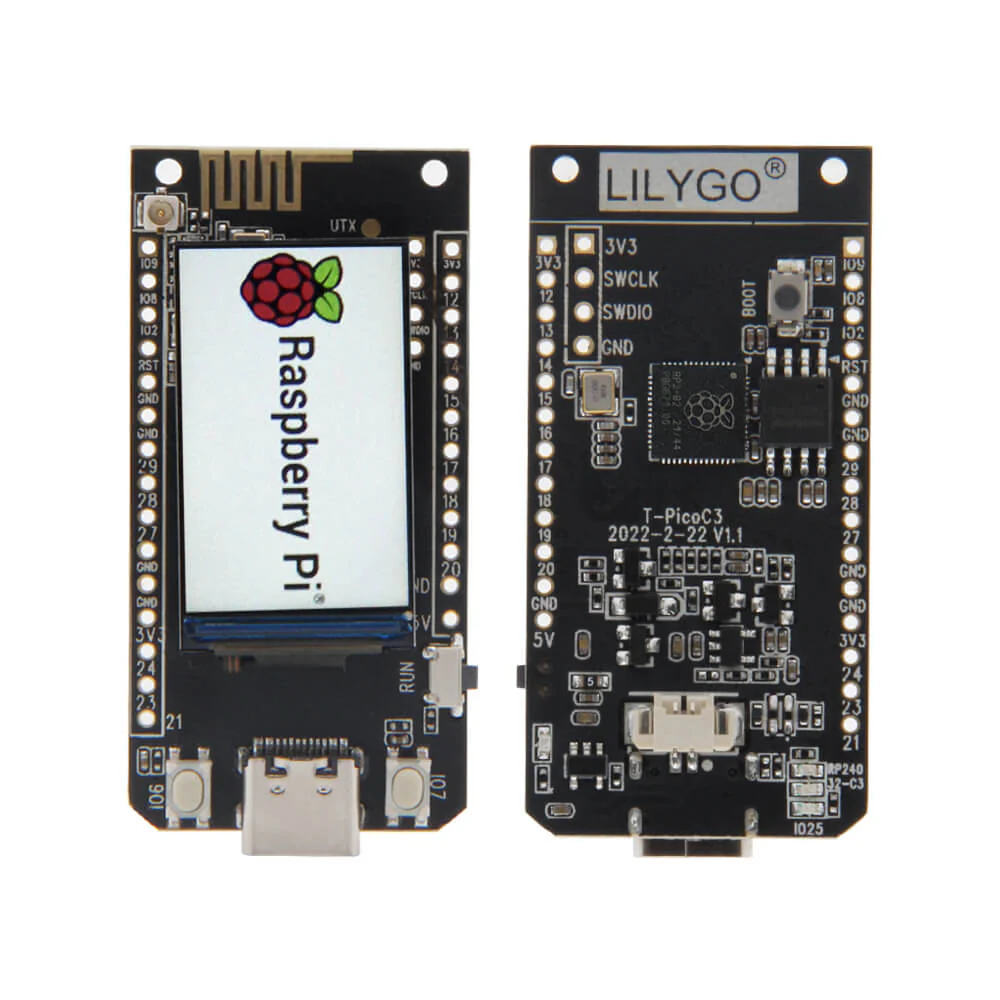

T-Pico C3

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Pico C3

T-Pico Pro

T-Pico 2350

T-Pico Pro

T-Pico C3

Pin Diagram

More

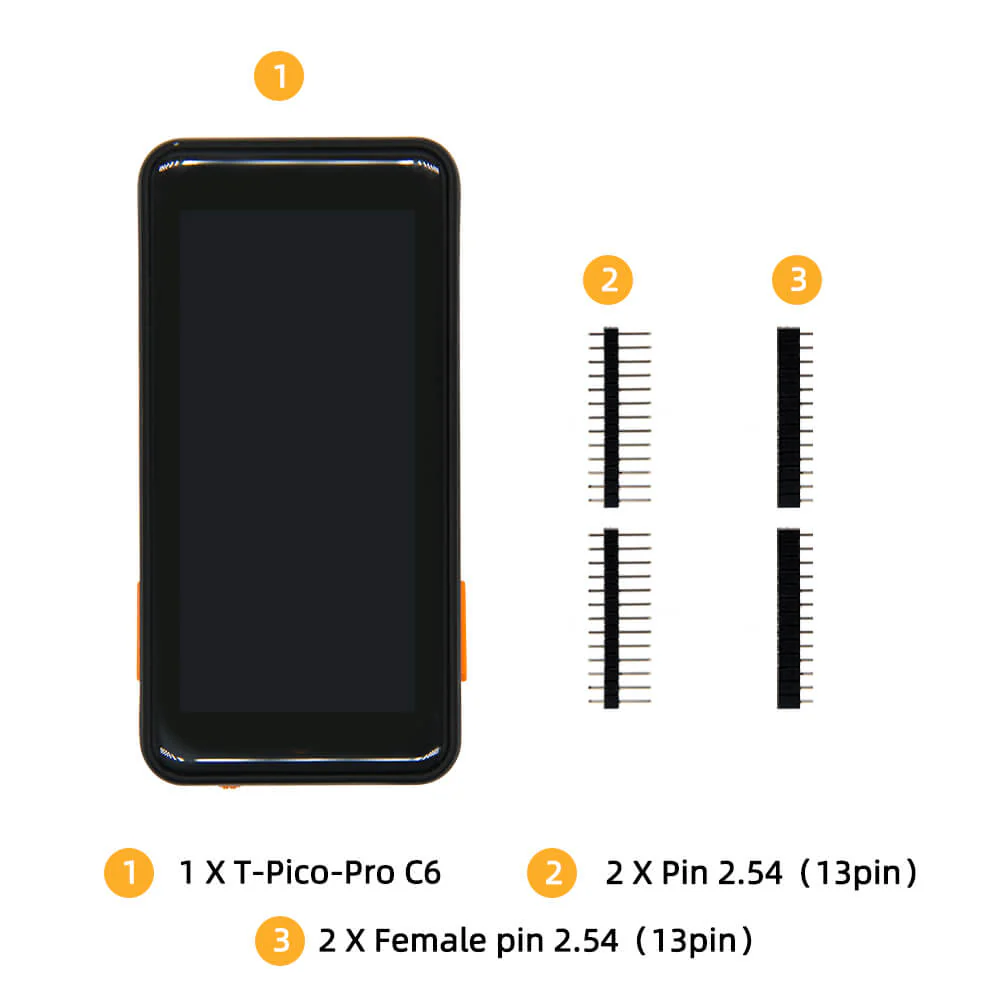

What's In The Box

T-Pico Pro

T-PicoC3
