0.96 Inch OLED
LILYGO® TTGO 0.96 Inch OLED White Color Text Display Module 128*64 LCD Display I2C 0.96 Iic Serial 128x64 For T-BEAM and T-SIM
Specification
| Size | 0.96 inch |
| High resolution | 128 * 64 |
| Color | White |
| Viewing angle | > 160 ° |
| Driver IC | SSD1306 |
| Working temperature | -30 celcius ~ 80 celcius |
| Module volume (generous) | 27.0MM * 27.0MM * 4.1MM |
| Supports many control chip | Fully compatible with Arduino, 51 series, MSP430 series, STM32/2, CSR chip, etc. (a lot of routines for reference) |
| Wide voltage support |
without any modification, directly supports 3.3V ~ 5V DC |
| Ultra-low power consumption | Normal operation Is 0.04W |
| IO port occupies minimal display | The IIC communication, as long as the two IO ports |
Example display for use with T-Beam
0.96" OLED

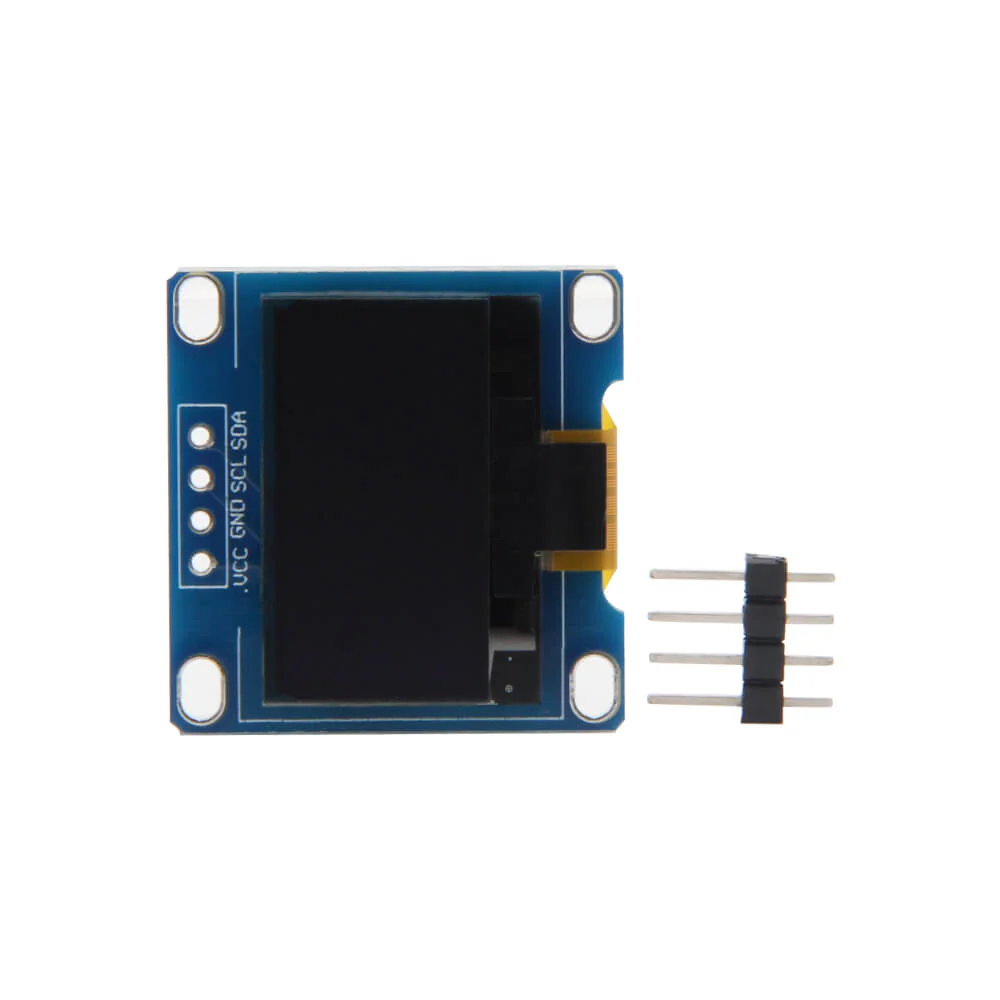

- 1 X I2C 0.96" OLED 128x64
- 1 X 4PIN (The picture is for reference only, and it is not welded by default.)
$0.75
Original: $2.50
-70%0.96 Inch OLED—
$2.50
$0.75
